| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 6750MHz | |
| ● | 3.0dB Bandwidth | 900MHz (6300 ~ 7200MHz) | |
| ● | Insertion Loss @ F0 | ≤1.0dB @ 6750MHz | |
| ● | Return Loss | ≥23dB @ 6400 ~ 7100MHz | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 5930MHz | ≥45dB @ 7400 ~ 7570MHz |
| ≥45dB @ 5930 ~ 6100MHz | ≥80dB @ 7570 ~ 18000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

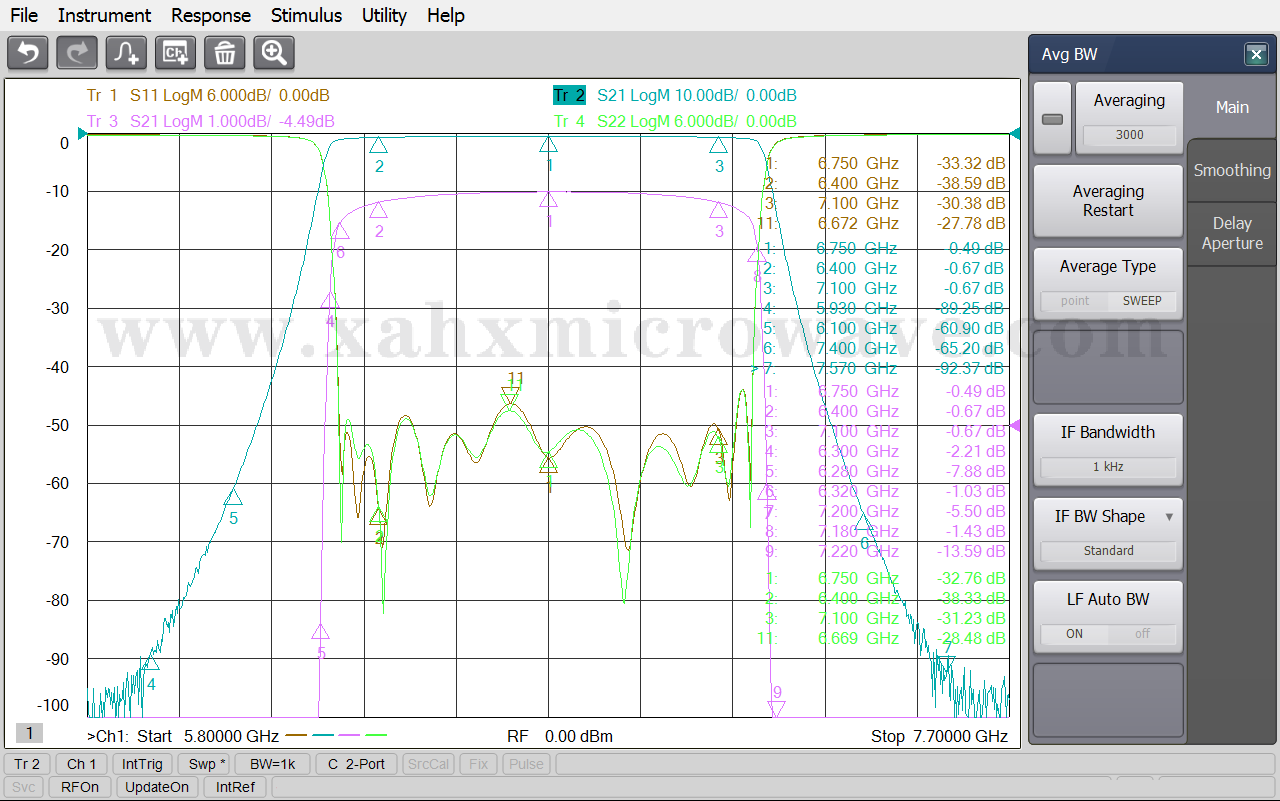

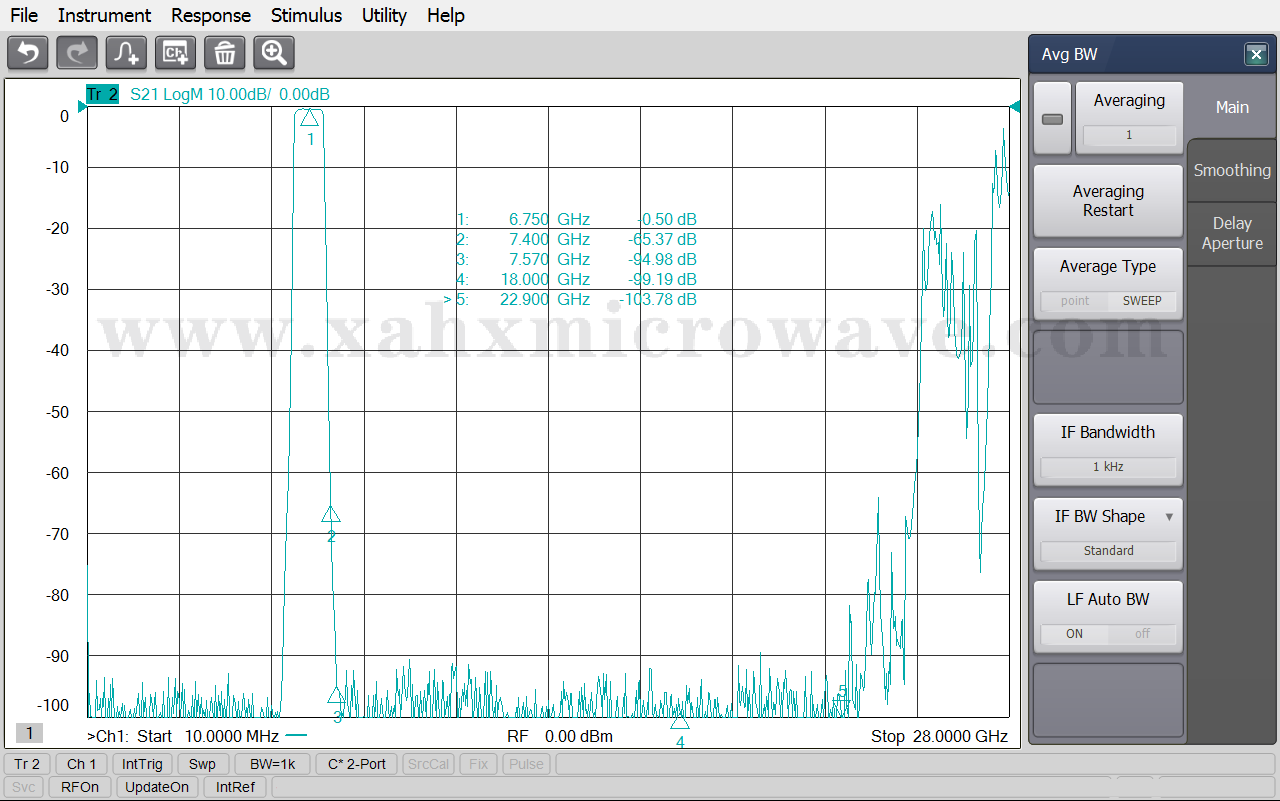

| Test Curve | |||
