| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 2850MHz | |
| ● | 3.0dB Bandwidth | 160MHz (2770 ~ 2930MHz) | |
| ● | Insertion Loss @ F0 | ≤1.2dB @ 2850MHz | |
| ● | Return Loss | ≥23dB @ 2800 ~ 2900MHz | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 2630MHz | ≥50dB @ 3000 ~ 3070MHz |
| ≥50dB @ 2630 ~ 2700MHz | ≥80dB @ 3070 ~ 9000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

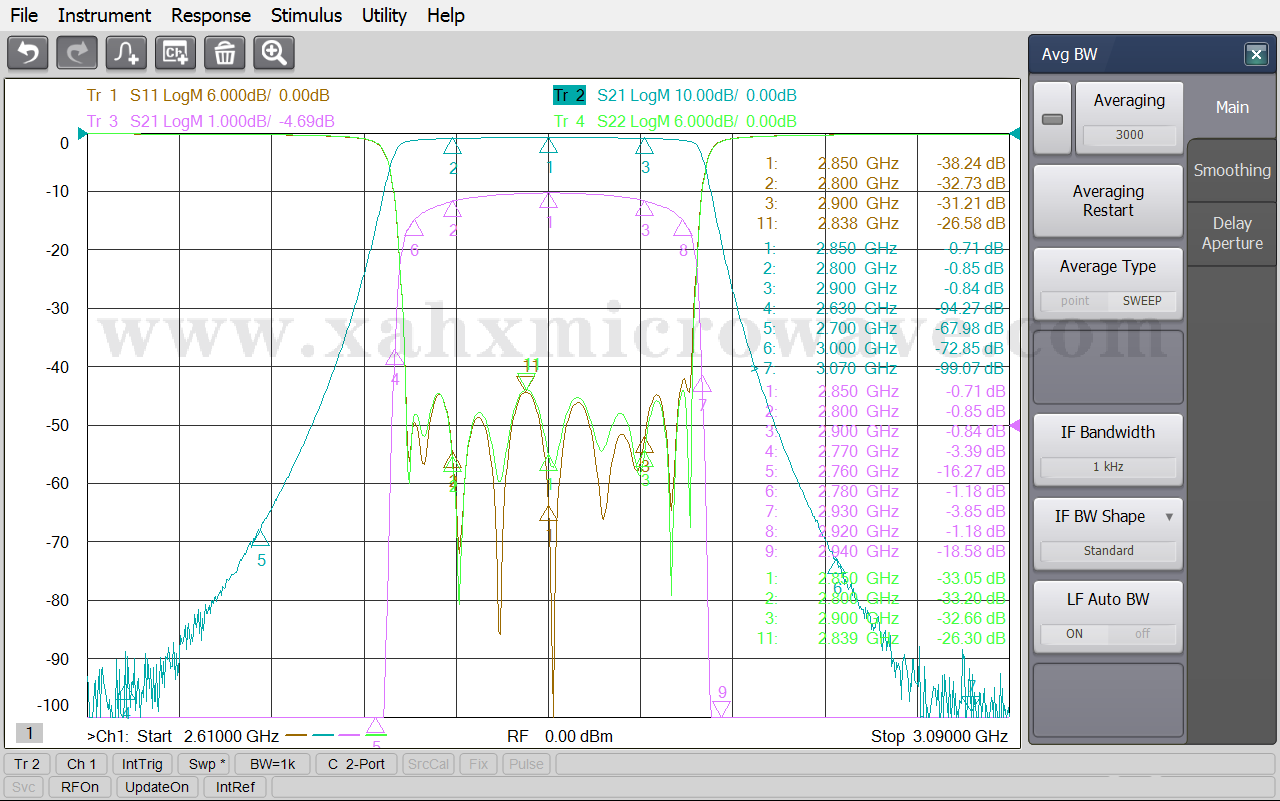

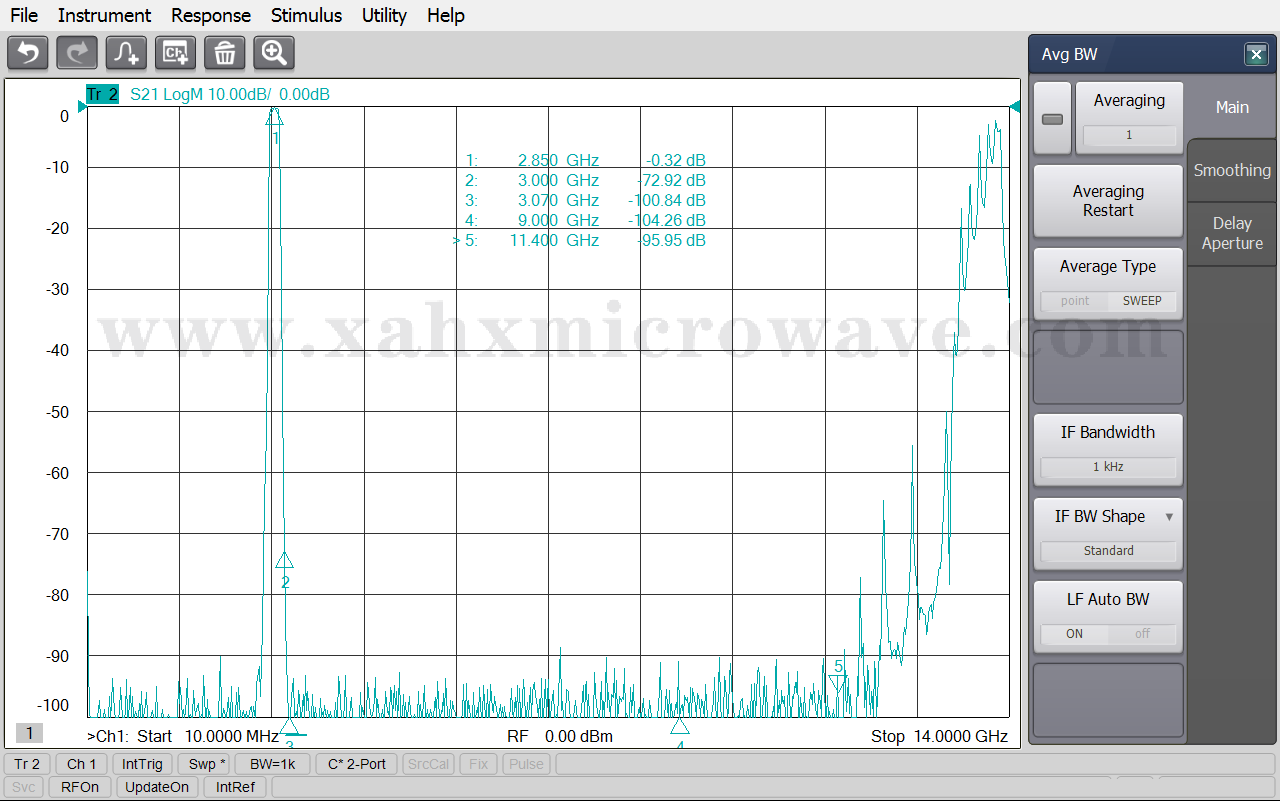

| Test Curve | |||
