Technical Data Sheet
●	Center Frequency(F0)	2104MHz
●	Pass Band Frequency	2100 ~ 2108MHz
●	Pass Band Insertion Loss	≤2.0dB
●	Pass Band Ripple	≤0.6dB
●	Pass Band Return Loss	≥20dB
●	Stop Band Rejection	≥60dB @ DC ~ 2085MHz	≥60dB @ 2123 ~ 6000MHz
●	Impedance	50 Ohms
●	Power Handling	20W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	+10℃ ~ +50℃

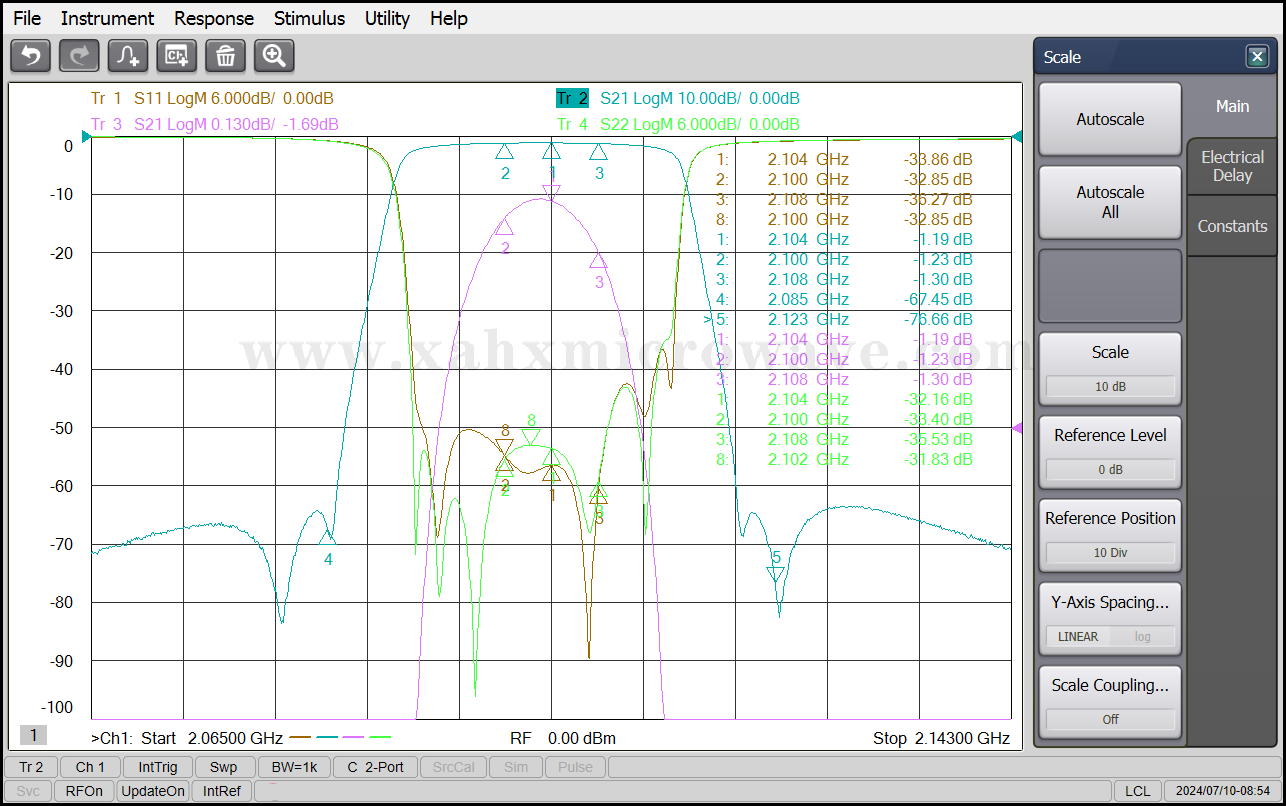

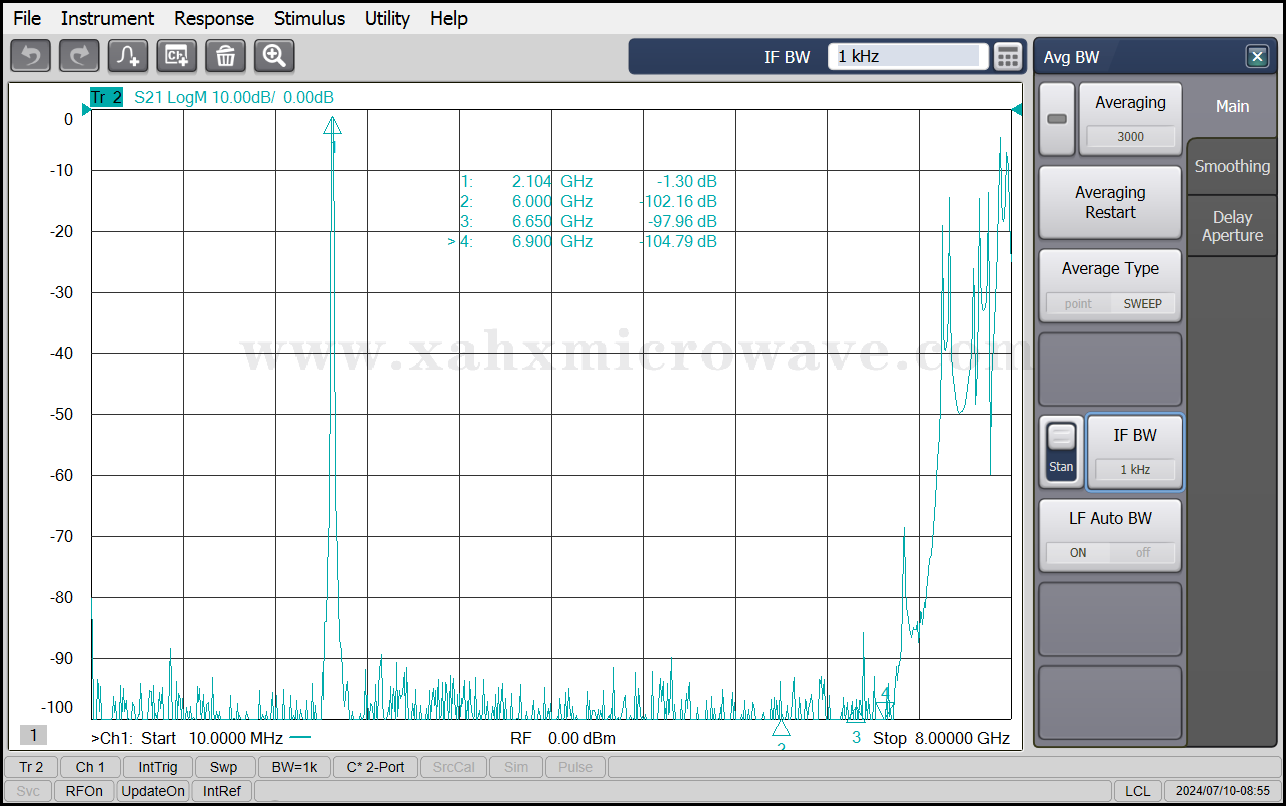

Test Curve
