Technical Data Sheet
●	Center Frequency(F0)	9350MHz
●	Pass Band Frequency	9200 ~ 9500MHz
●	Pass Band Insertion Loss	≤1.2dB
●	Pass Band Ripple	≤0.6dB
●	Pass Band Return Loss	≥23dB
●	Stop Band Rejection	≥50dB @ DC ~ 8990MHz	≥50dB @ 9710 ~ 19000MHz
●	Impedance	50 Ohms
●	Power Handling	20W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-20℃ ~ +60℃

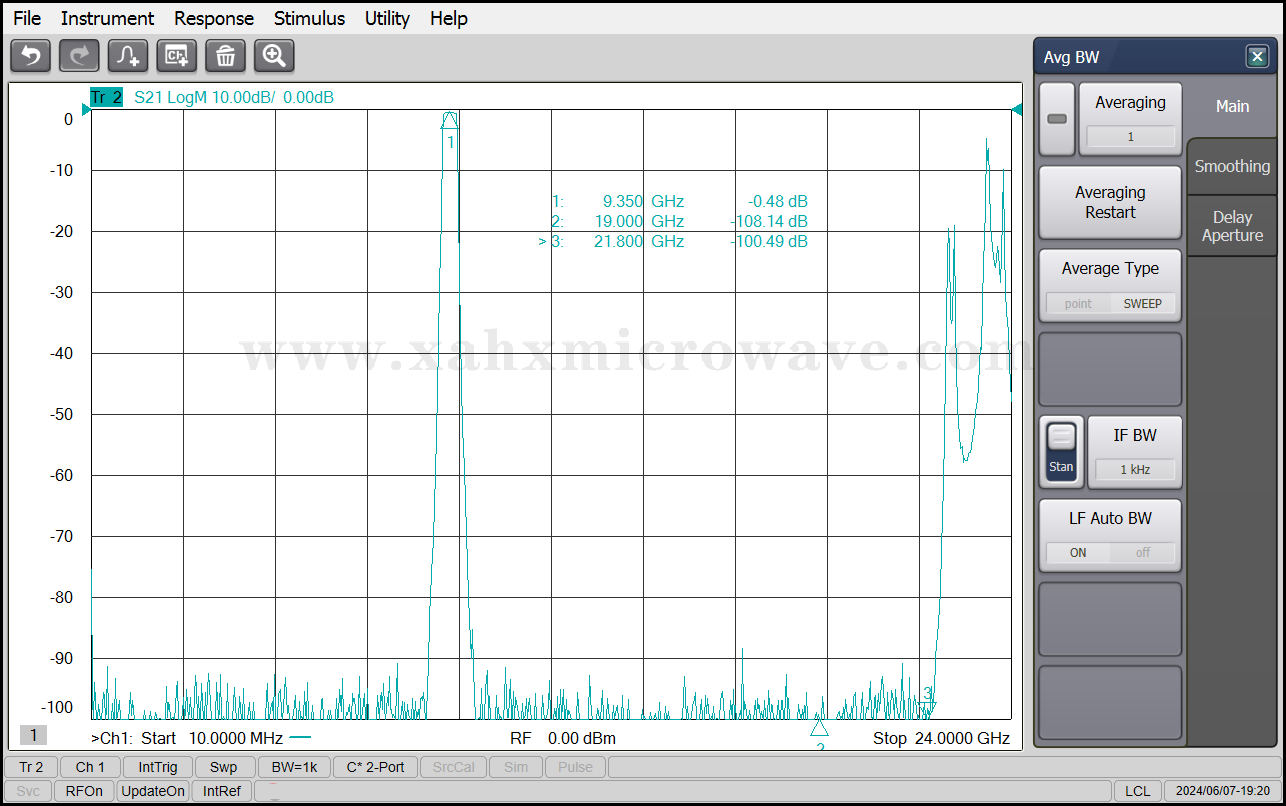

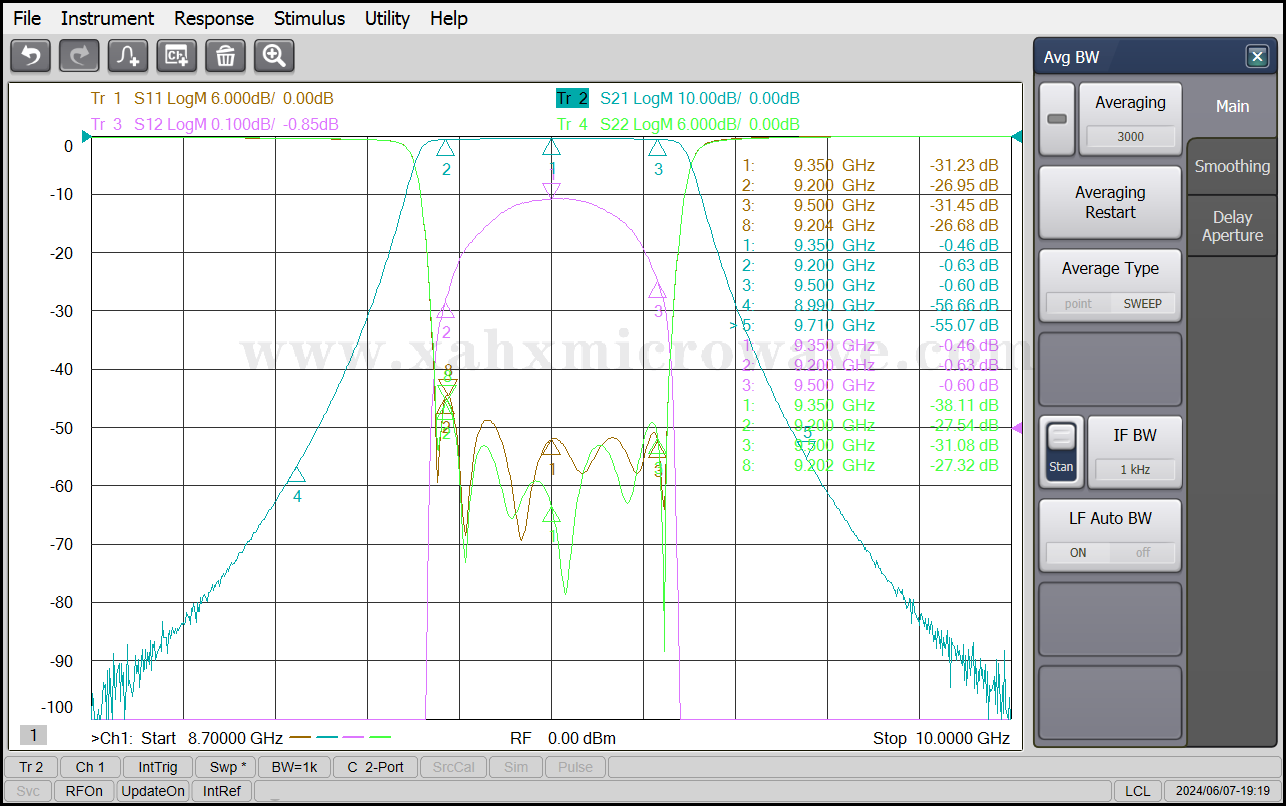

Test Curve
