Band Pass Filter

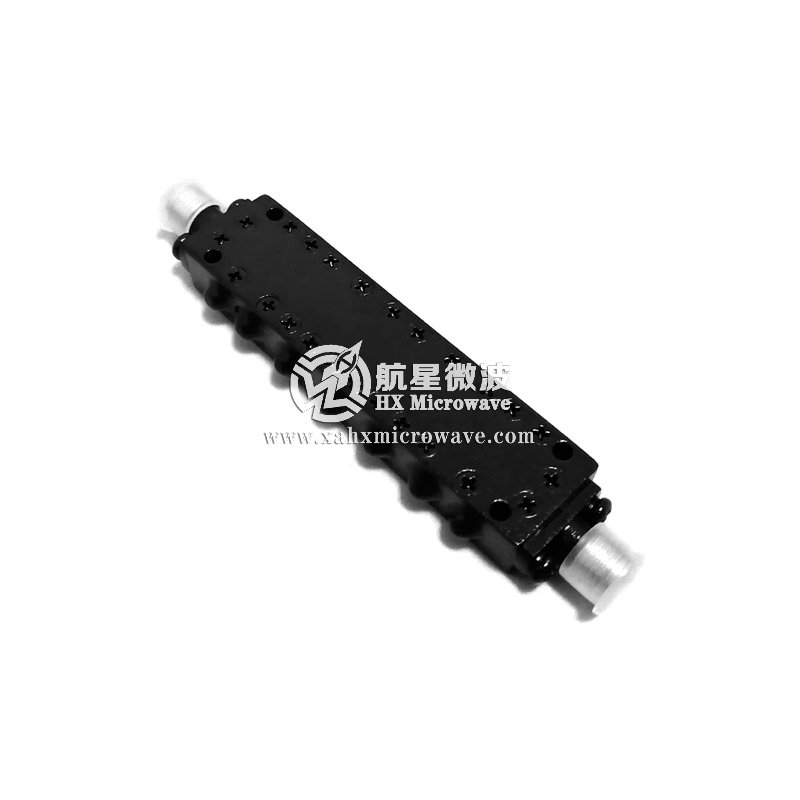

14～18GHz Interdigital Band Pass Filter

P/N：HXLBQ-DTA103
Pass Band Frequency:14～18GHz
inhibition：≥60dB
Insertion loss：≤2.0dB
Product description: Product Features ♦ Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Out of band suppression ♦ Operating temperature range: -40~+70°C
PDF technical index download

Technical Data Sheet
●	Center Frequency(F0)	16GHz
●	Pass Band Frequency	14～18GHz
●	Pass Band Insertion Loss	≤1.4dB
●	Pass Band VSWR	≤1.8:1
●	Stop Band Attenuation	≥40dB @ F0±5.5GHz (10. 5GHz、21.5GHz)
●	Number of Sections	7
●	Impedance	50 ohms
●	Power Handling	≤2W
●	Connectors	SMA-Female
●	Surface Finish	The Original Silver Color or Black Paint
●	Temperature Range	-20℃～+85℃
Test Curve
