| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 5500MHz | |
| ● | Pass Band Frequency | 5250 ~ 5750MHz | |
| ● | Pass Band Insertion Loss | ≤1.0dB | |
| ● | Pass Band Ripple | ≤0.5dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 4750MHz | ≥50dB @ 6000 ~ 6700MHz |
| ≥50dB @ 4750 ~ 5000MHz | ≥100dB @ 6700 ~ 12000MHz | ||
| ≥50dB @ 12000 ~ 15000MHz | |||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 20W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

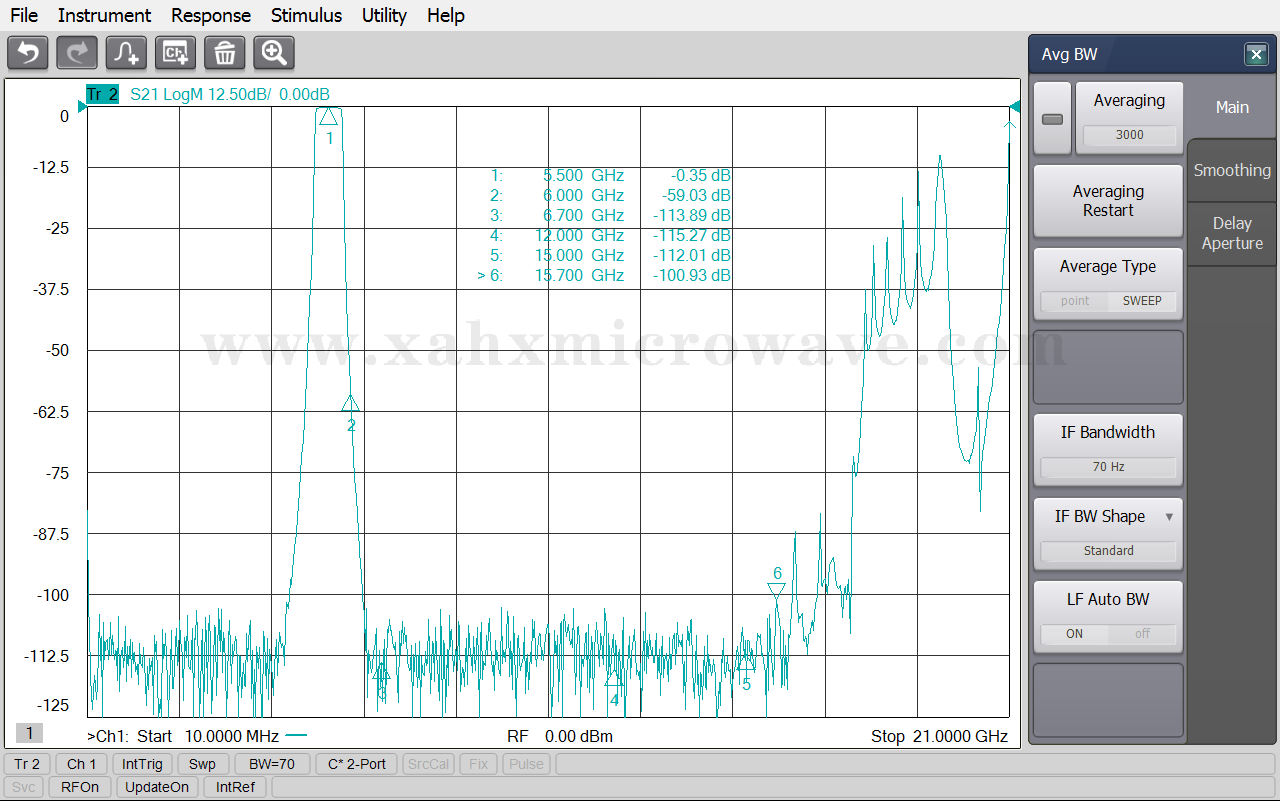

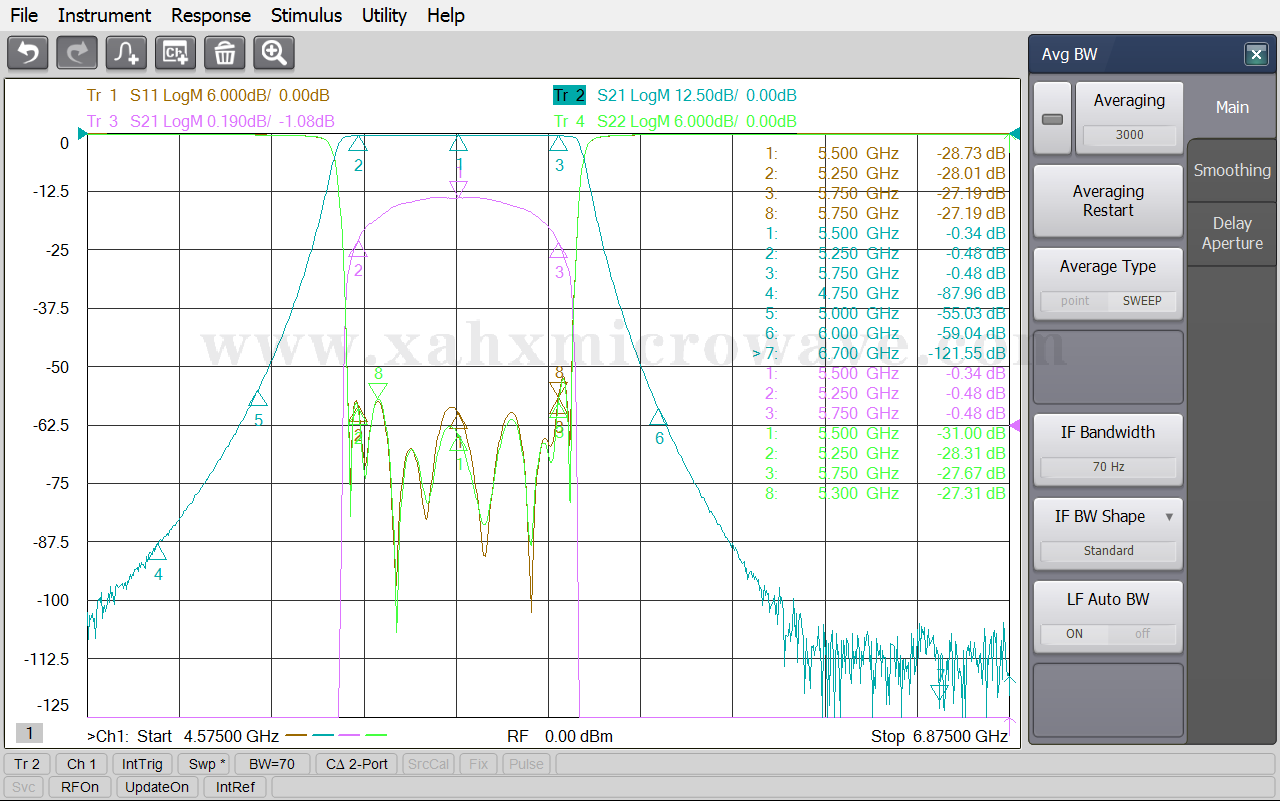

| Test Curve | |||
