| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 11000MHz | |
| ● | Pass Band Frequency | 10500 ~ 11500MHz | |
| ● | Pass Band Insertion Loss | ≤1.0dB | |
| ● | Pass Band Ripple | ≤0.45dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥100dB @ DC ~ 9000MHz | ≥50dB @ 12000 ~ 12250MHz |
| ≥50dB @ 9000 ~ 10000MHz | ≥80dB @ 12250 ~ 28000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |
| ● | Dimensions | 70*16*9.5mm | |

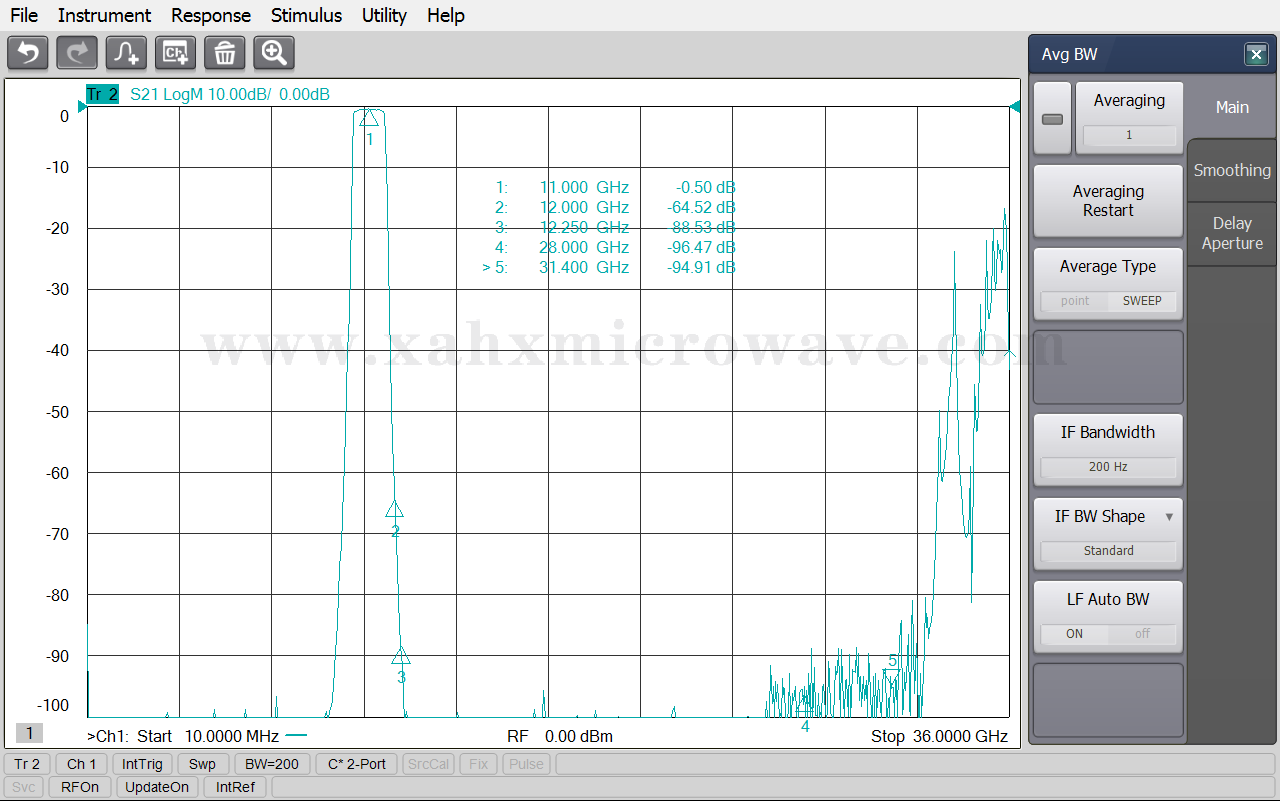

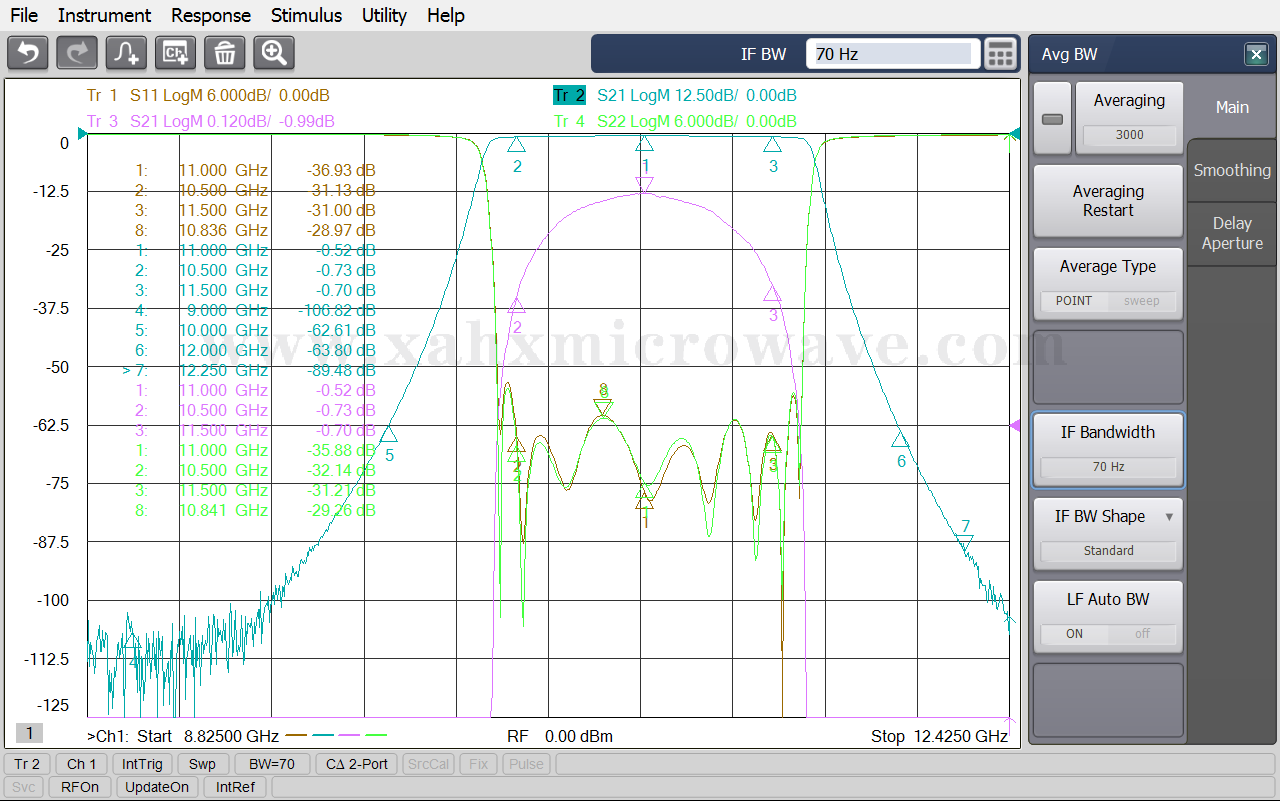

| Test Curve | |||
