| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 400MHz | |
| ● | Pass Band Frequency | 399 ~ 401MHz | |
| ● | Pass Band Insertion Loss | ≤2.0dB | |
| ● | Pass Band Ripple | ≤0.4dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 390MHz | ≥40dB @ 410 ~ 1500MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 20W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -20℃ ~ +60℃ | |

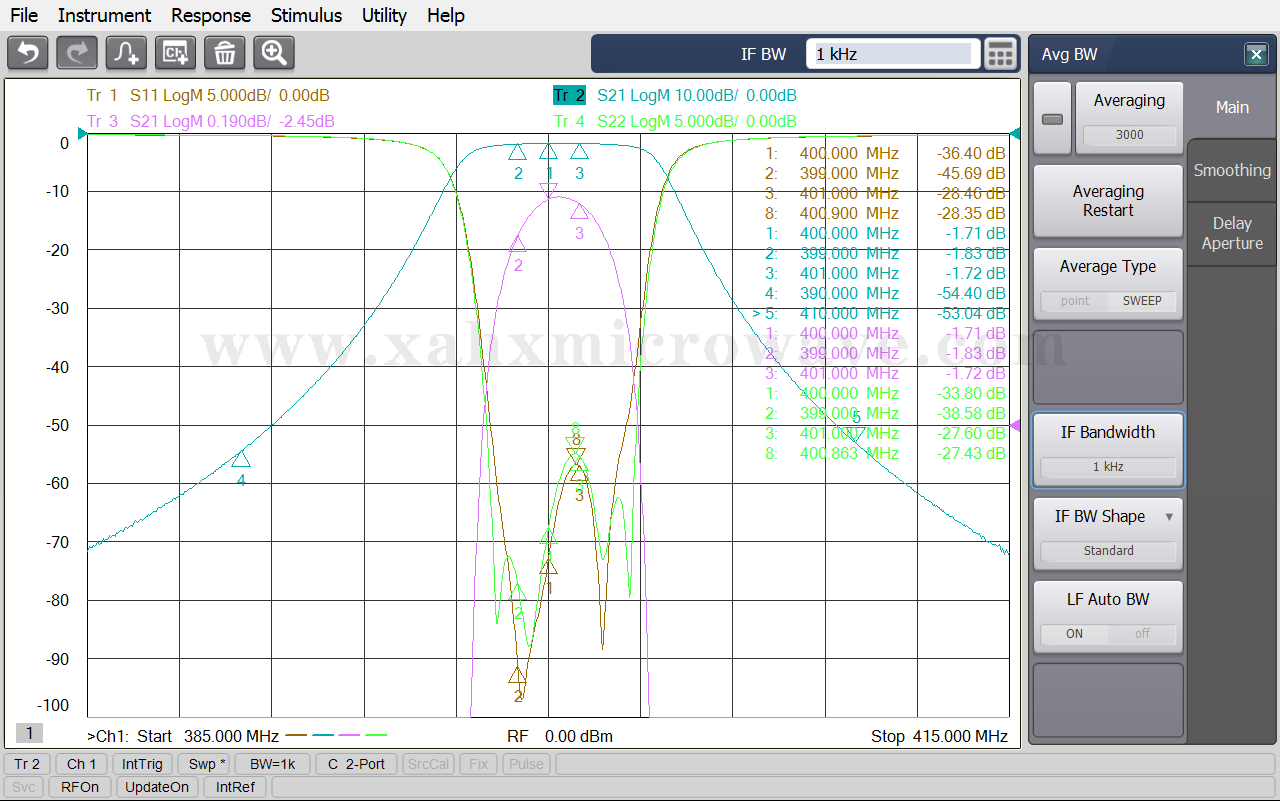

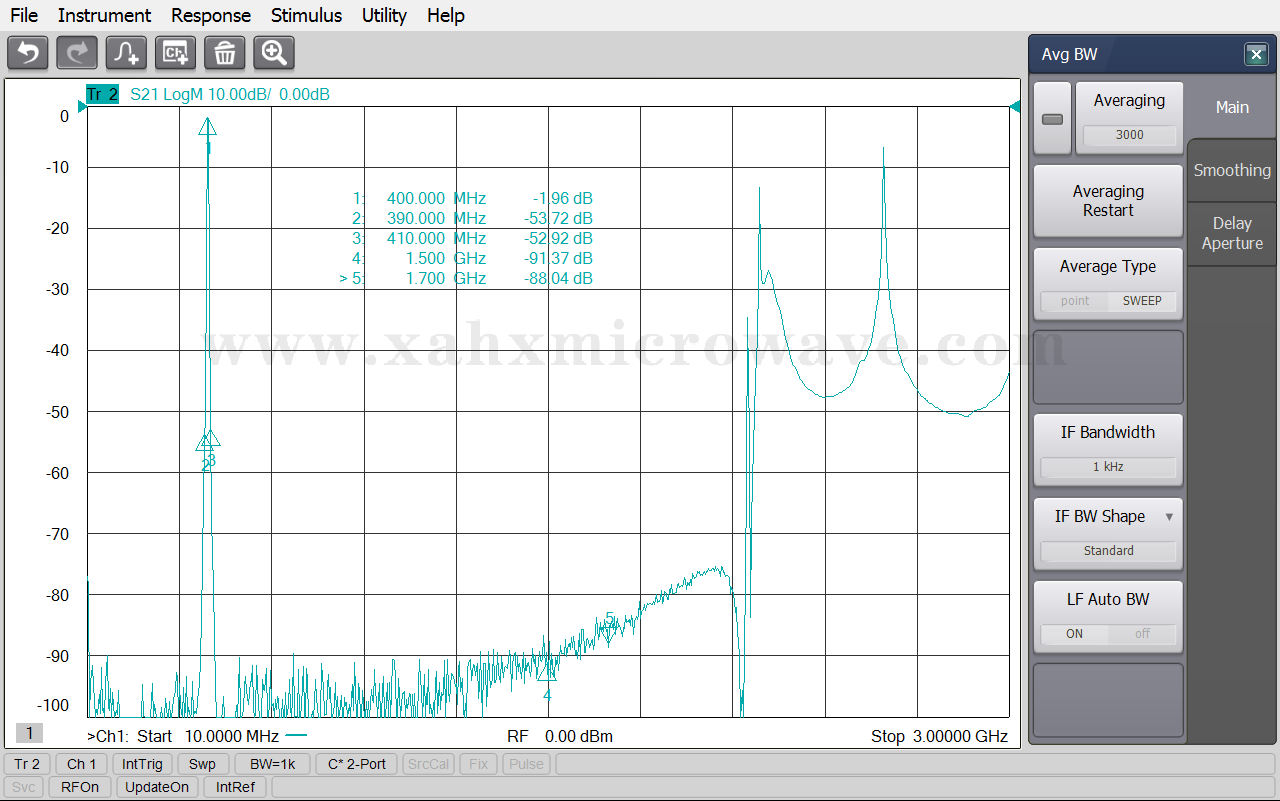

| Test Curve | |||
