  • 2400-2490MHz Cavity Band Pass Filter

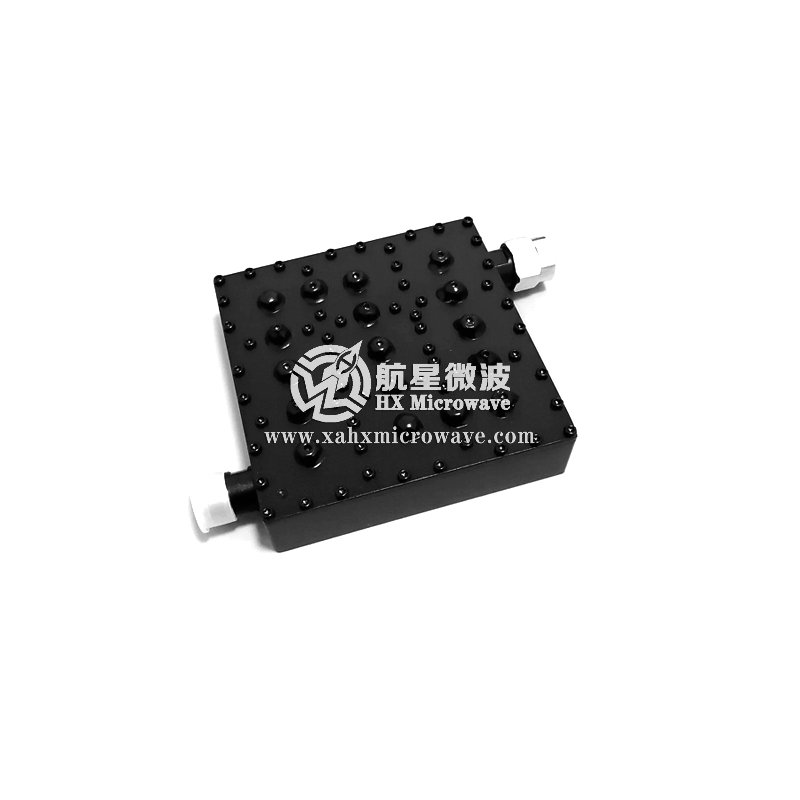

2400-2490MHz Cavity Band Pass Filter

2400-2490MHz Cavity Band Pass Filter

  • P/N：HXLBQ-DTA316
  • Pass Band Frequency：2400-2490MHz
  • Stop Band Rejection：≥50dB
  • Connectors：N-Male / N-Female
  • Product description: Small size and high cost performance_Low standing wave and low insertion loss_Inhibition of high__Ultra Wide Band Filter_Narrow Band Filter_Suspended Stripline Filter_Cavity Filter_LC Filter_Interdigi
  • PDF technical index download
Technical Data Sheet
● Center Frequency(F0) 2445MHz
● Pass Band Frequency 2400 ~ 2490MHz
● Pass Band Insertion Loss ≤1.0dB
● Pass Band Ripple ≤0.5dB
● Pass Band VSWR ≤1.3:1
● Stop Band Rejection ≥50dB @ DC ~ 2380MHz ≥50dB @ 2510 ~ 5000MHz
● Impedance 50 Ohms
● Power Handling 120W Max.
● Connectors N-Male / N-Female
● Surface Finish Painted Black
● Temperature Range -30℃ ~ +70℃
Test Curve
